تفاصيل المنتج:
شروط الدفع والشحن:
|
| العلامة التجارية: | Canex | النموذج: | CX900 |
|---|---|---|---|
| الجهد المدخل: | 220 فولت ، 50 هرتز | بلد المنشأ: | الصين |
| الوزن: | 11 كجم | درجة حرارة التسخين: | 450 ℃ |
| المواد: | PP ، PE | نطاق اللحام: | 0.8-3.0 مم |
| الضمان: | 24 شهراً | اللون: | أخضر |
| إبراز: | 0.8-3.0mm Hot Wedge Welder,1800W hdpe liner welding machine,Pond hdpe liner welding machine,1800W hdpe liner welding machine,Pond hdpe liner welding machine |
||

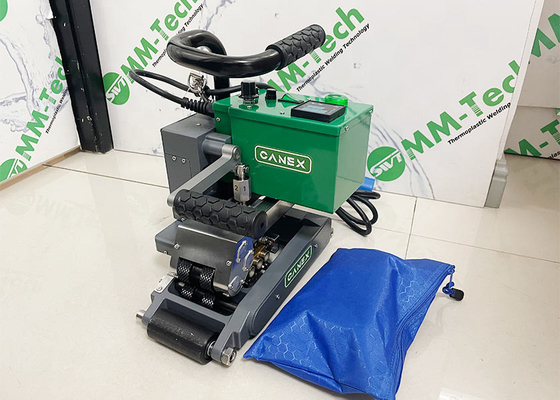

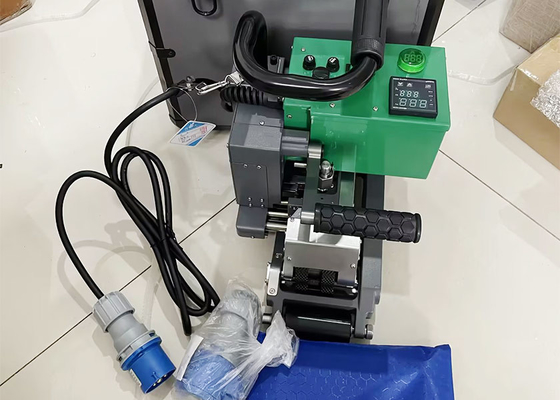

CX900 1800W Hot Wedge Machine For Welding 0.8-3.0mm PE Geomembrane Use For Landfill
Product Description:
The temperature control of CX900 Hot Wedge Welder adopts automatic constant temperature PID control, which has Precise temperature; the speed control adopts pulse width modulation (PWM) automatic voltage and speed stabilization circuit: the DC servo motor drive has large output torque can maintain a constant speed when climbing.
Product Specifications:
| Voltage: | 220V |
| Frequency: | 50Hz |
| Power: | 1800W |
| Welding speed: | 0-8m/min |
| Heating temperature: | 0-450℃ |
| Welding material thickness: | 0.8-3.0mm |
| Welding seam width: | 15mm*2, inner cavity 16mm |
| Welding seam strength: | ≥85% of original material |
| Overlap width: | 120mm |
| Net weight: | 9.5kg |
Applications:
The MM-Tech brand hot wedge welder CX900 has wide - ranging applications. In hydraulic/water conservancy engineering, it securely welds geomembranes to construct canals, reservoirs, and other hydraulic structures. In civil engineering projects, it is vital for the construction of roads, railways, and airport runways, ensuring the waterproofing and stability of pond liner. In the field of environmental protection, it's used in landfill sites to prevent harmful substances from leaching into the soil and groundwater. It also serves as an ideal tool for welding PP and PE geomembrane in mining projects like tailings ponds and waste dumps. Additionally, in agriculture, it helps build irrigation systems and ponds with reliable waterproofing. Its efficient and high - quality welding capabilities are crucial to the success of various projects.
Product Advantages:
1. Main Frame Design:
The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.
2. Precision Bearings:
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
3. Hot Wedge:
The hot wedge cutter is available in copper and brass. 1800W sufficient power, fast welding speed, and the fixing screws are filler with silicone shields.
4. Guide Rail Part:
The lower support rail is an eccentric wheel, the upper pressure wheel has a spring, and the guide rail is a copper sleeve stainless steel shaft with strong durability.
5. Pressure Adjustment:
The double handle design is ergonomic, and the pressure nut is equipped with a high-strength spring for easy adjustment.
