1.0-4.0mm HDPE Geomembrane Hot Wedge Welder CX700 Full Power 2400W

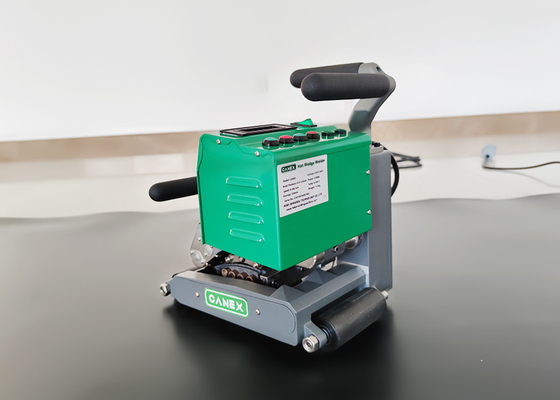

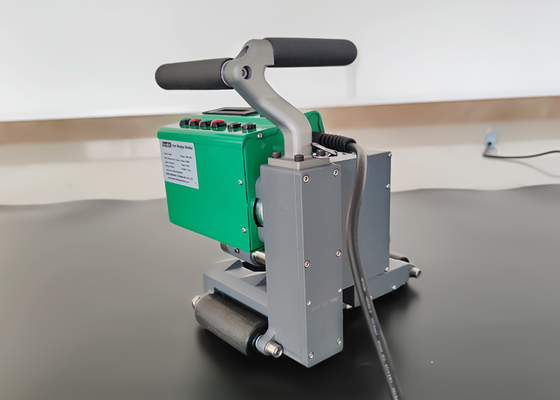

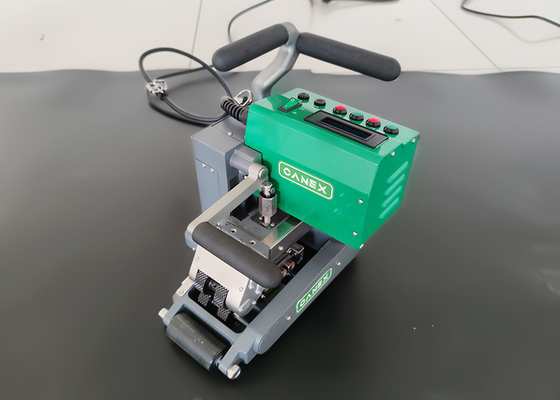

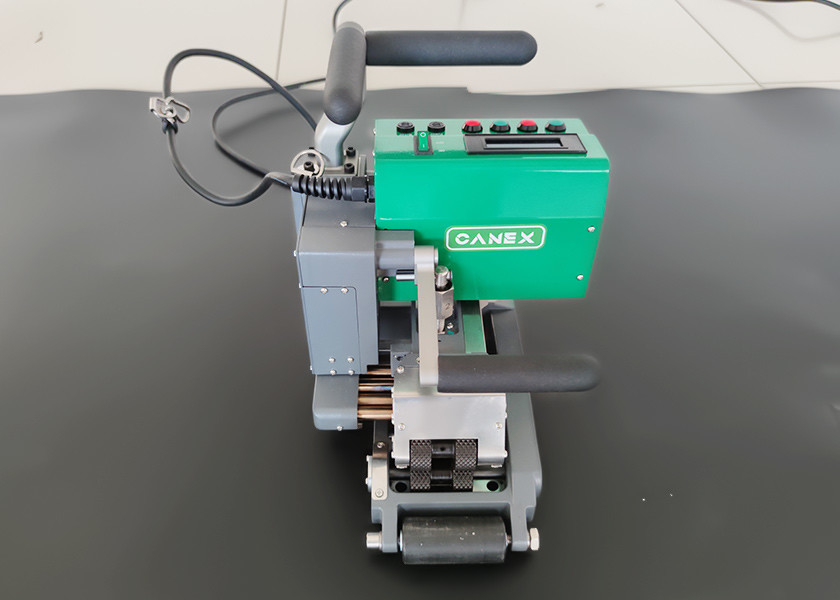

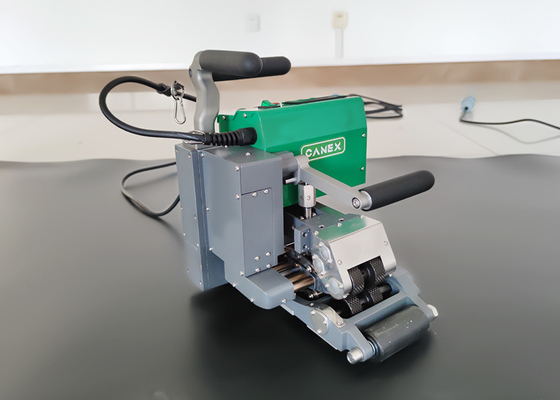

Hot Wedge Geomembrane Welder CX700


     The CX700 weighs 11.5kg and has a power of 2400W. The main frame of this machine the material used is aviation aluminum, the characteristics of this material, light weight, high strength, no deformation, and we use the die casting process, (not foundry die casting), is open steel mold, the use of 1500 tons of die casting machine die casting molding, after forming, the surface is painted treatment, spray paint after processing.

Parameter specification

Application

     The geomembrane welding machine CX700 is a versatile tool with broad applications. In hydraulic engineering, it ensures the integrity of canals and reservoirs by securely welding geo-membrane.


     For waste management, it's vital in landfill liners to prevent toxic leakage, safeguarding the environment. In mining, it effectively constructs secure tailings ponds.


     Also, it serves in agricultural water conservancy, building leak - proof irrigation systems and ponds.


     In civil engineering, it helps create durable and waterproof foundations for roads and railways. Its reliable performance is key to the success of various projects.


Product Features

1. Main Frame Design

   The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.


2. Precision Bearings
   The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

3. Liquid Crystal Display Screen
   The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.

4. Pressure Adjustment
   The entire bearing of the machine is imported from Germany.

5. Hot Wedge
   Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.

6. Heating Tube
   The wading depth of the machine is 50mm (water lees than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.

FAQ

1. How About The Delivery Time?

   Approximately within 10-14 days after received your payment.


2. Can I Get A Sample From Your Company? Should I Pay For The Express Fee?

   We can offer free sample to you.After confirming your order, the sample's freight cost wil be deducted from your order's total cost.


3. What Are The Use Scenarios Of Geomembrane?

   Water conservation engineering, municipal engineering, mining, fishery, agriculture, environmental protection,etc.


4. How Can I Pay?

   You can pay by credit card, wire transfer, western union, and paypal, etc.


5. How To Ship The Machines?

   Normally we ship the goods through express such as DHL, FEDEX, UPS.


6. Do You Test All Items Before Shipping?

   Yes, we have passed 100% testing before delivery.


7. How To Guarantee The Quality?

   Warranty is 5 years, if there are any quality problems, we accept return or give spare parts for free.
